Trimline TVA Series—Ordering Information

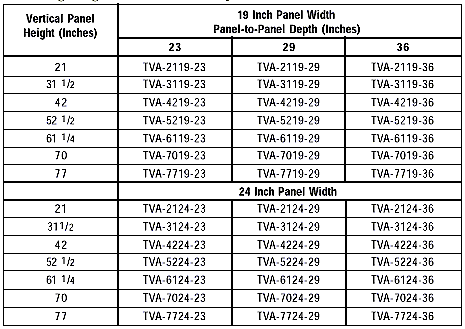

	Assemblies Assemblies include frame with trim and 2 pairs of adjustable panel mounting angles (tapped with 10-32 holes on EIA spacing); 2 outside removable side panels; rear mounted door with handle, lock and 2 keys. (Door hinged right unless otherwise specified.)

To order frames only, substitute prefix TVF in place of TVA. Frames will include trim and 2 pairs of tapped panel mounting angles.

Trim Numbers
Added as suffix to assembly number. Includes vertical and horizontal members with vinyl inlay, complete and installed on frame.


	Side Panels (Supplied with TVA Series Assemblies) Side panels are flush mounted, outside removable with recessed hand grip. Interchangeable left or right. Available louvred or slotted at additional cost.


	Doors (Rear mounted door supplied with TVA Series assemblies) Mounts left hand or right hand, front or rear with concealed hinges and is instantly removable. Magnetic catches on closure side. Furnished with a recessed handle, lock and 2 keys.


	Note: Short door kit must be used when smaller door is being used. Catalog numbers SDK-19 for 19 Inch or SDK-24 for 24 Inch frames.


	Plexiglass Doors (For use as front door, specify 21/8 inch trim on frame) 1/4 inch thick plexiglass front surface permits viewing of instrumentation through closed door, retaining all the features of the standard trimline door, such as: quick release hinges, magnetic closure, keyed lock and flush handle. Smoke Gray is standard. Other colors available.
