Trimline TSA Series —Ordering Information

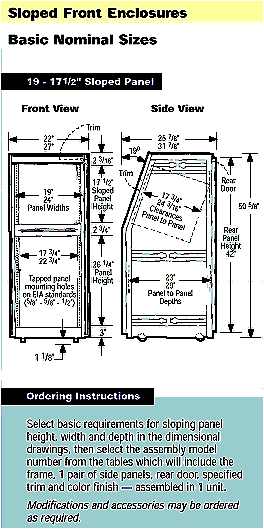

Sloped Front Enclosures Basic Nominal Sizes


	Assemblies: Sloped Front Panel Racks Assemblies include frame with trim and 2 pairs of adjustable vertical panel mounting angles (tapped with 10-32 holes on EIA spacing) and fixed angles on the front sloping panel area; 2 outside removable side panels; rear mounted door with handle, lock and 2 keys. Units will be finished and assembled. Specify colors and trim combinations. (Door hinged at right unless otherwise specified.)



	Trim The trim is mounted flush with the front outline of the frame. The top horizontal section is 2 1/8 inches wide, covering the face of the frame top. The vertical sections are 5/8 inch wide, mitred at the slope break. To order desired style, add as suffix to the assembly number. -2B for Black grained inlay -2W for Walnut, textured inlay

	Side Panels: Supplied with TSA Series Assemblies The side panels are outside removable and mounted flush with the frame. The model number designates a pair (1 each, left and right).


	Rear Door: Supplied with TSA Series Assemblies Door mounts left hand or right hand with concealed hinges and is instantly removable. Foam gasketed on 4 sides with magnetic catches on closure side. Furnished with a recessed handle, lock and 2 keys.


	Front Doors Doors for the front vertical panel opening are available. These doors mount onto the panel mounting angles.
