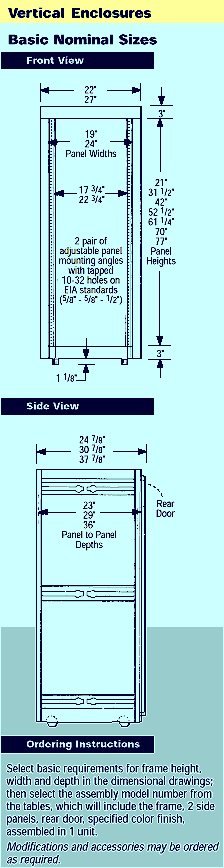

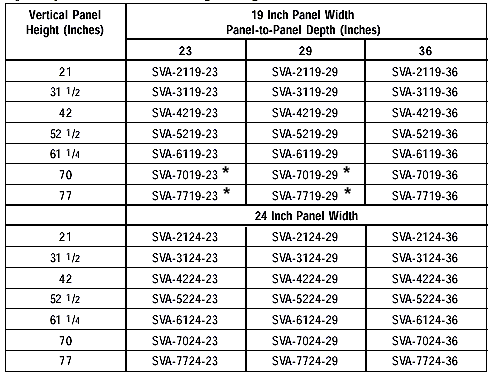

Spartan SVA Series—Ordering Information


		Assemblies Assemblies include frame with 2 pairs of adjustable panel mounting angles (tapped with 10-32 holes on EIA spacing); 2 outside removable side panels; rear mounted door with handle, lock and 2 keys. Unit will be finished and assembled. Specify colors. (Door hinged right will be furnished unless otherwise specified.)



	To order frames only, substitute prefix SVF in place of SVA. Frames will include 2 pairs of tapped panel mounting angles.

	Side Panels: Supplied with SVA Series Assemblies Side panels are flush mounted, outside removable with recessed hand grip. Interchangeable left or right. Available louvred at additional cost.



			Doors: Rear mounted door supplied with SVA Series assemblies Mounts left hand or right hand, front or rear with concealed hinges and is instantly removable. Magnetic closure. Furnished with a recessed handle, lock and 2 keys.


	Note: Short door kit must be used when smaller door is being used. Catalog numbers SDK-19 for 19 Inch or SDK-24 for 24 Inch frames.


	Plexiglass Doors One-quarter inch thick plexiglass front surface permits viewing of instrumentation through closed door, retaining all the features of the standard Trimline door, such as: quick release hinges, magnetic closure, keyed lock and recessed handle. Smoke Gray standard. Other shades available.
