Accessories for Trimline TIC Series

Chassis/Shelf Support Angles

Adjustable, formed 16 gauge steel angles mount to side brackets of TIC series cases for supporting shelves or chassis. Packaged in pairs (click here).

Actual Length (L) (Inches)	To Fit TIC Panel-to-Panel Depth (Inches)	Catalog Number
12	13	TIA-13
16	17	TIA-17
20	21	TIA-21

TIC Shelves

16 gauge formed shelves for support equipment or use as an open end chassis. Requires a pair of TIA chassis angles supports for mounting into TIC cases.

TIC Panel-to-Panel Depth (Inches)	Overall Depth (Inches)	For 19 Inch Width Catalog Number
13	12 1/2	TIS-13
17	16 1/2	TIS-17
21	20 1/2	TIS-21

TIC Panel-to-Panel Depth (Inches)	Overall Depth (Inches)	For 15 5/8 Inch Width Catalog Number
13	12 1/2	TIS-13-15
17	16 1/2	TIS-17-15
21	20 1/2	TIS-21-15

Blank Panels

Tilt Stand

Molded plastic legs and 3/16 inch diameter formed chrome plated steel rod with hardware for mounting to TIC cases. Snap action detents hold stand in retracted or extended positions (illustrated in photo click here).
Catalog No. TTS-95 for 91/2 inch panel width cases.
Catalog No. TTS-15-19 for 155/8 and 19 inch panel width cases.

Chassis Slides

n Three-piece full extension
n Instant disconnect
n Positive mechanical stop
n Ball bearing and nylon rollers
n C/R steel zinc plated and irridated
n 100 lb. load rating (extended)
n Furnished with adapter brackets and hardware for mounting slides into TIC cases.

Fits Panel-to Panel Depth (Inches)	Slide Length (Inches)	Extension Length (Inches)	Catalog Number
13	12	12	TBB-100-12
17	16	16	TBB-100-16
21	20	20	TBB-100-20

Rack Adapters


	Painted, extruded 1/8 inch aluminum angle adapters with closed slotted holes on E.I.A. standard panel spacing for mounting special design width TIC cases (155/8 inch panel width) into standard 19 inch panel width racks and enclosures. No additional panel fillers are required. Cases are fabricated for mounting at no extra charge when adapters are ordered together with cases.

Rack Panel Height Required (Inches)	To Fit 15 5/8 Width TIC Case Panel Height (Inches)	Catalog Number
5 1/4	3 1/2	TRA-3
7	5 1/4	TRA-5
8 3/4	7	TRA-7
10 1/2	8 3/4	TRA-8
12 1/4	10 1/2	TRA-10
14	12 1/4	TRA-12

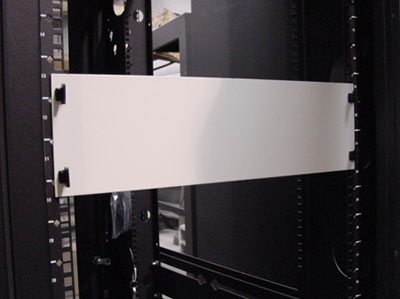

	Panels listed below are selected standards for use with TIC instrument cases. All panels are painted except for MAP Series, which are masked on both surfaces. Also available in quick release version (requires universal rails).
